جزئیات محصول
محل منبع: گوانگدونگ، چین
نام تجاری: Longyuan Lock
گواهی: FCC CE RoHS ISO9001
شماره مدل: LY-8839
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش: 10 عدد
قیمت: negotiable
جزئیات بسته بندی: کارتن: 100PCS/CTN یا بسته بندی سفارشی موجود است
زمان تحویل: 5-15 روز کاری
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union
قابلیت ارائه: 10000 عدد در روز
استفاده: |
کمدهای الکترونیکی، کمدهای یخچالی، قفسه لجستیک تحویل |
اندازه گیری قفل: |
8cmx8cmx1.4cm |
وزن قفل: |
268 گرم |
ولتاژ محاسبه شده: |
DC12 (ولتاژ سفارشی) |
جاری: |
2A |
حداکثر توان: |
24 وات |
آزمایش اسپری نمک: |
≥48 ساعت |
حداکثر توان به موقع: |
کمتر از 5 ثانیه |
استفاده: |
کمدهای الکترونیکی، کمدهای یخچالی، قفسه لجستیک تحویل |
اندازه گیری قفل: |
8cmx8cmx1.4cm |
وزن قفل: |
268 گرم |
ولتاژ محاسبه شده: |
DC12 (ولتاژ سفارشی) |
جاری: |
2A |
حداکثر توان: |
24 وات |
آزمایش اسپری نمک: |
≥48 ساعت |
حداکثر توان به موقع: |
کمتر از 5 ثانیه |

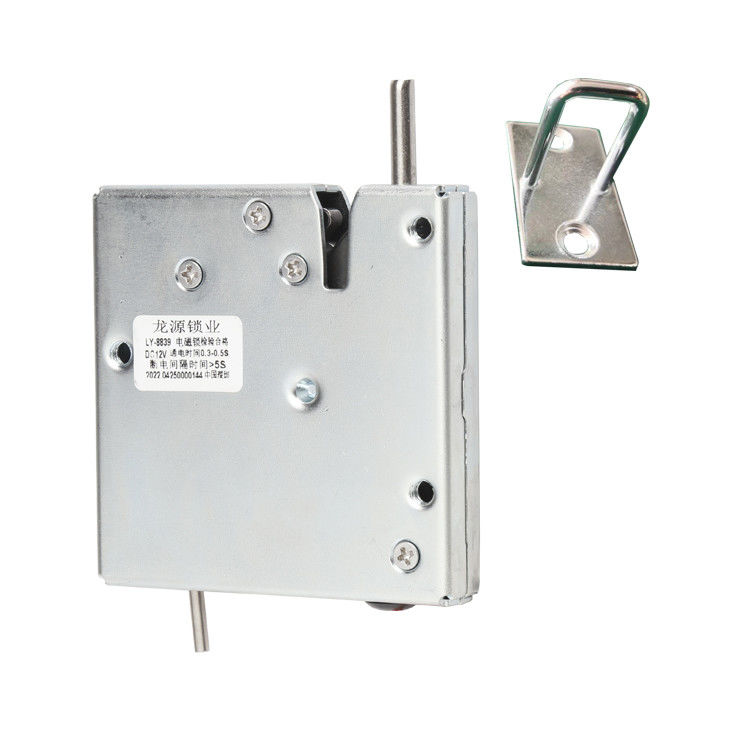

Anti-shoke Smart Parcel Locker Cabinet Lock Swimming Pool Locker Electronic Lock
Product Advantages
1. Energy saving, usually closed and locked without power consumption
2. Safety, shockproof, pry-proof, rust-proof
3. The electronic locker lock is activated by a high-strength engine gear, and has a fully automatic unlocking.
Failure analysis
How to judge equipment failure?
1. Equipment Power-off
Unlock method: Unlock by emergency pull rod method
2. Power-on time is too long Cause the electromagnet frame to burn
Unlock method: Pry emergency lever to unlock
3. U-shaped part hook and torsion spring were broken
Unlock method: Unlock the emergency lever and pry the door
Principle
Electromagnetic Lock is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions.
Specification
|
Product name
|
Electromagnetic lock
|
|
Place of Origin
|
Shenzhen China
|
|
Brand Name
|
Longyuan Lock
|
|
Model Number
|
LY-8839
|
|
Lock Body size
|
80mmx80mmx14mm
|
|
Weight with hook
|
268g
|
|
Weight with hook
|
SPCC,Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC12V(accept customized)
|
|
Min Unlock Voltage
|
6V
|
|
Current
|
2A
|
|
Max Power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Salt spray testing
|
≥48hours
|
|
Working temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Signal detection/ switch(open/close)
|
Open/ Close Feedback for option
|
|
Install way
|
Screw
|
|
Unlock way
|
power on and emergency lever
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
Service and strength
We are electromagnetic cabinet lock leader in China, we have our own design and research team, we can customized product upon your actual demands. We have supplied products for many famous company home and abroad, such as FUIOU, HIVEBOX,CHINA TOWER,CLOUDBOX,EASIVEND,UBOX,FUJI BINGSHAN, TCN,COMPTON, TOPBAND, ZKH,DIYI BOX,DPC,MEITUAN,ELE ME etc. We believe our products will also meet or exceed your demands.
Welcome to contact us freely.
