قفل برقی کابینت هوشمند قفل جعبه بسته استیل هوشمند

جزئیات محصول

محل منبع: گوانگدونگ، چین

نام تجاری: LONGYUAN

گواهی: FCC,CE,RoHS

شماره مدل: LY-8823

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 10 عدد

قیمت: negotiable

جزئیات بسته بندی: جعبه کارتن: 100PCS/CTN. مواد بسته بندی: کارتن تقویت کننده K=K

زمان تحویل: 5-8 روز کاری

شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram

قابلیت ارائه: 10000 - 49999 (15 روز کاری)

بهترین قیمت رو بدست بیار
حالا تماس بگیرید
مشخصات
برجسته کردن:

قفل برقی کابینت هوشمند

,

قفل برقی کابینت استیل

رنگ قفل:
نقره
مواد:
SPCC، فولاد کربنی
MOQ:
10 عدد
کاربرد:
کابینت انباری، قفسه فروش
حداکثر توان:
24 وات
وزن قفل:
0.2 کیلوگرم
رنگ قفل:
نقره
مواد:
SPCC، فولاد کربنی
MOQ:
10 عدد
کاربرد:
کابینت انباری، قفسه فروش
حداکثر توان:
24 وات
وزن قفل:
0.2 کیلوگرم
توضیحات
قفل برقی کابینت هوشمند قفل جعبه بسته استیل هوشمند

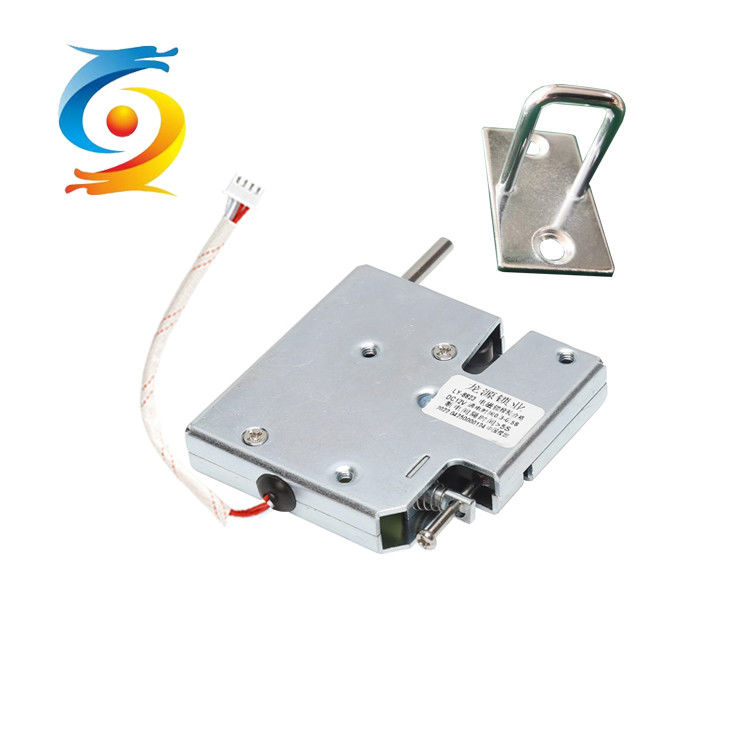

Smart Steel Solenoid Lock for Outdoor Package Delivery Cabinet Intelligent Parcel Box



Product Quick detail

Power on unlocking instant, less than 1second, usually closed and locked without power consumption, voltage: 12V (according to the actual needs of users: 5V-24V various voltage models) Long life: can be used repeatedly 1.2 million times Safety: Sensitive, shockproof, pry-proof, rust-proof.



Principle

Electronic solenoid lock is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM. If the password is correct, the electromagnetic actuator will be driven to unlock; if the password is incorrect, the operator will be allowed to re-enter the password for up to three times; If it is not correct, the single-chip microcomputer will send an alarm to the intelligent monitor through the communication line.



Application

Longyuan lock widely used in electronic storage locker,smart medical consumables locker,smart endoscopic locker,phone charging locker,smart key locker,smart vending locker,smart logistics cabinet, Residential Locker,Intelligent Locker,Self service locker, Automated Click & Collect locker,supermarket self-service cabinet, beach locker,community electronic mail box, campus locker,power exchange cabinet, book vending machine etc.



Technological parameters

Product Name
Electromagnetic Lock
Model
LY-8823
Brand
Longyuan Lock
Size
70mmX70mmX13.2mm
Weight with lock hook
210g
Material of lock body
SPCC
Material of lock tongue
Powder Metallurgy
Surface treatment
Galvanized
Cable outer leakage length
170mm(accept customized)
Working voltage
DC12V (Voltage customized)
Working current
2.5A
Min Unlock Voltage
6V
Maximum power
30W
Manner of working
Manner of working
Reaction time
0.3sec
Blackout interval
>5sec
Working temperature
 -40℃ to +80℃
Working humidity
95%
Working life
more than 100,000 times
Sample
Available
OEM
Accepted
Signal detection/switch(open/close)
Open/ Close Feedback for option
Certification
CE,ISO9001, RoHS
Warranty
1year
قفل برقی کابینت هوشمند قفل جعبه بسته استیل هوشمند 0
قفل برقی کابینت هوشمند قفل جعبه بسته استیل هوشمند 1

Packing & Delivery

Carton Material of Package : K=K Reinforcement Carton

Standard package: Carton box package, 50pcs/layer, 100pcs/carton.

Lock latch: 1000pcs/carton

Mounting screws: 9000pcs/carton
Customized package accept.
